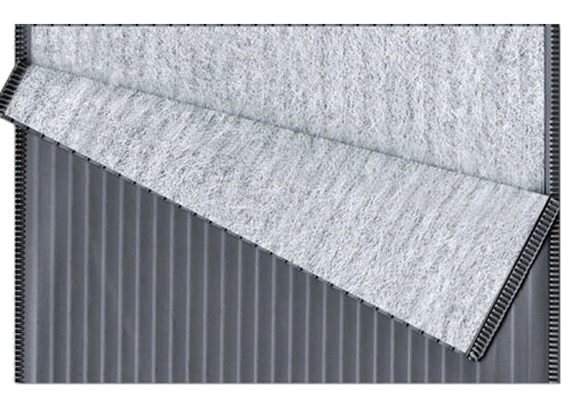

PE composite separator

PE composite diaphragm is made of special glass fiber felt for PE diaphragm and battery diaphragm by composite process. It has good mechanical strength and vibration resistance, and can effectively prevent the active substance from falling off the plate. It is suitable for maintenance free batteries and power batteries.

Applicable battery range ● High vibration type battery ● Taxi type battery ●Tractor and construction machinery batteries

Baffle characteristics ● Suitable for packaging into bags and sheets Vibration resistance, improve mechanical performance ● High porosity ● Low resistance ● Aperture good corrosion resistance



Machinable process parameters
1. Product form	sheet type, bag type, roll type
2.PE substrate thickness	0.20 mm-0.30mm
3. Total thickness of PE	0.70 mm-1.30mm
4.GM fiberglass mat thickness	0.40 mm-0.60mm
5.PE + GM total thickness	1.0 mm-1.7mm
6. Width size range	115 mm-124mm; 156mm – 163mm
7. Height dimension range	any size
8. Encapsulation method (applicable to bag type)	Unilateral encapsulation, bilateral encapsulation, rib inward encapsulation
9. Packing method	sheet and bag type five-layer corrugated box packaging; roll type standard wooden pallet and five-layer corrugated hoarding box packaging



quality technical index parameters
1. Width	Customer requirements ± 1.0mm
2. Height	Customer requirements ± 1.0mm
3. Total thickness	customer needs (-0.05,+0.05)
4. Base thickness	customer needs (-0.02,+0.05)
5. Oil content	12% – 18%
6. Resistance	≤ 0.0010Ω * dm2
7. Transverse elongation	≥ 300.0%
8. Porosimetry	≥ 55.0%
9. Wettability	≤ 60s
10. Weight loss in pickling	≤ 4.0%
11. Dimensional stability	≤ 1.0%
12. Oxidation resistance (20H)	≥ 100.0%
13. Iron content	≤ 0.010%
14. Chlorine content	≤ 0.030%
15. Water content	≤ 4.0%
16. Pen-resistant	≥ 8.0N
